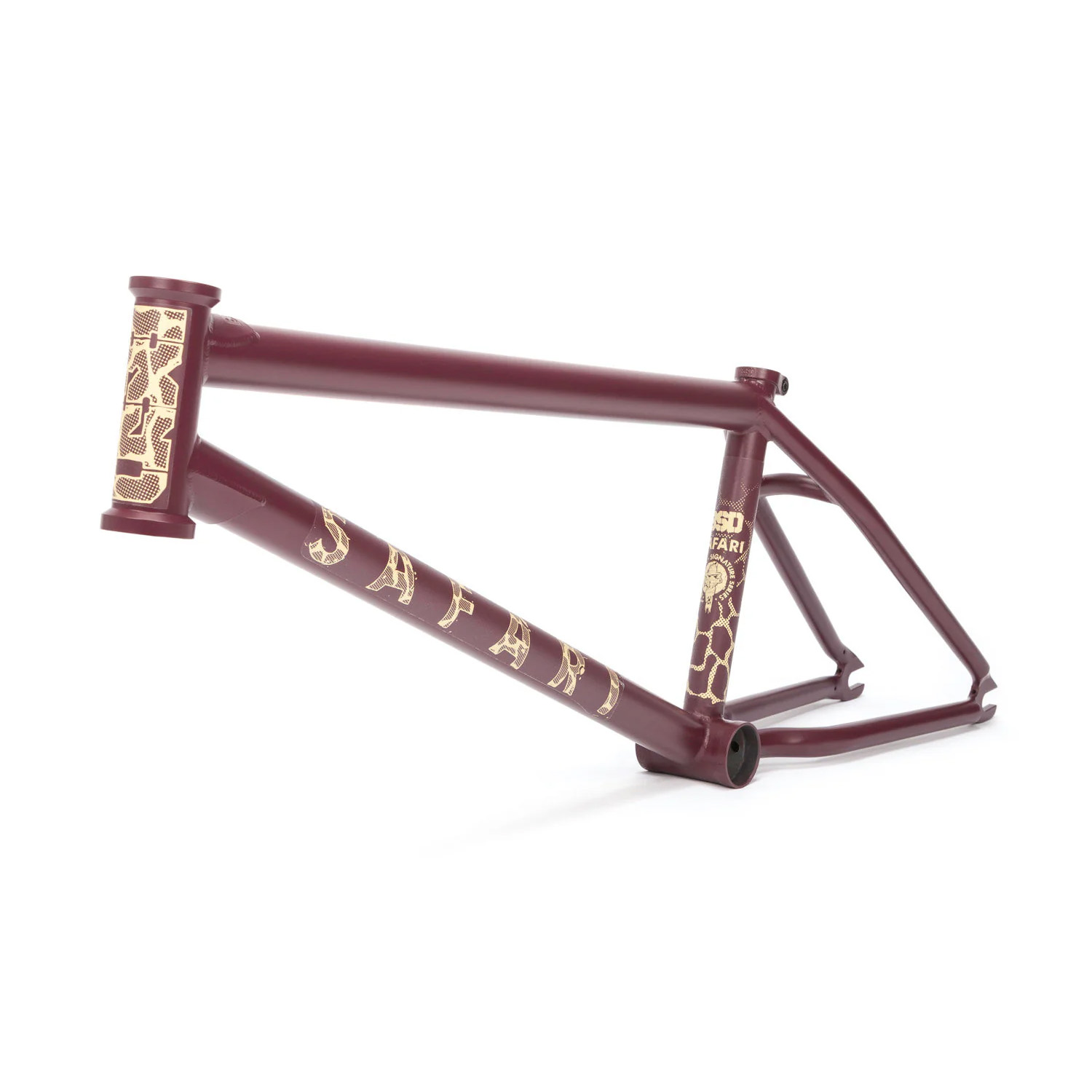

BSD - Safari V3 Frame

This is the latest version of Reed Stark's signature Safari frame, updated with a shorter 12.8-13.2" rear end, which is a halflink shorter than the old version. It also utilizes our Superscoop chainstay tubing for extra tire clearance when your wheel is slammed.

The Safari frame is designed to Reed's specification with a super long front end combined with a short back end and regular head angle. Simple yet effective!

TECH SPECS
Toptube lengths: 20.6 / 21 / 21.4 / 21.8
Headtube angle: 75°
Headtube length: 123mm
Seattube angle: 71°
Rear end length: 12.8-13.2"
BB Height: 11.75"
Standover height: 9.5"
Weight: 5.3lbs /2.4kg
Brake mounts: none - brakeless
Tubing: Sanko Japanese seamless 4130 CrMo / triple butted
Headtube: Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket: Heat treated 4130 CrMo / CNC machined
Chainstay: SuperScoop tubing
Dropouts: Heat treated 4130 CrMo / Invest cast
Seatclamp: Heat treated 4130 CrMo / Invest cast
Colours: SEA-FARI
