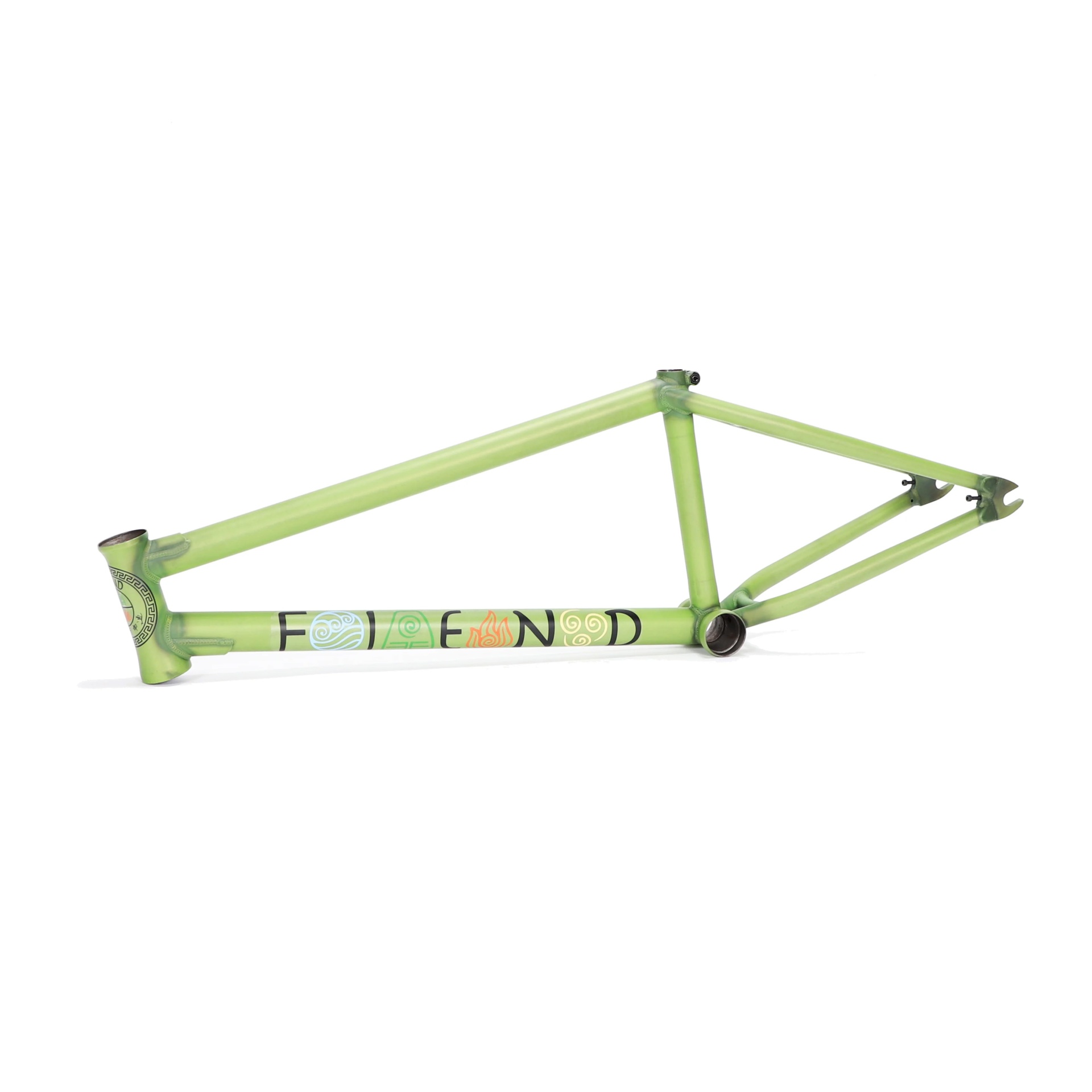

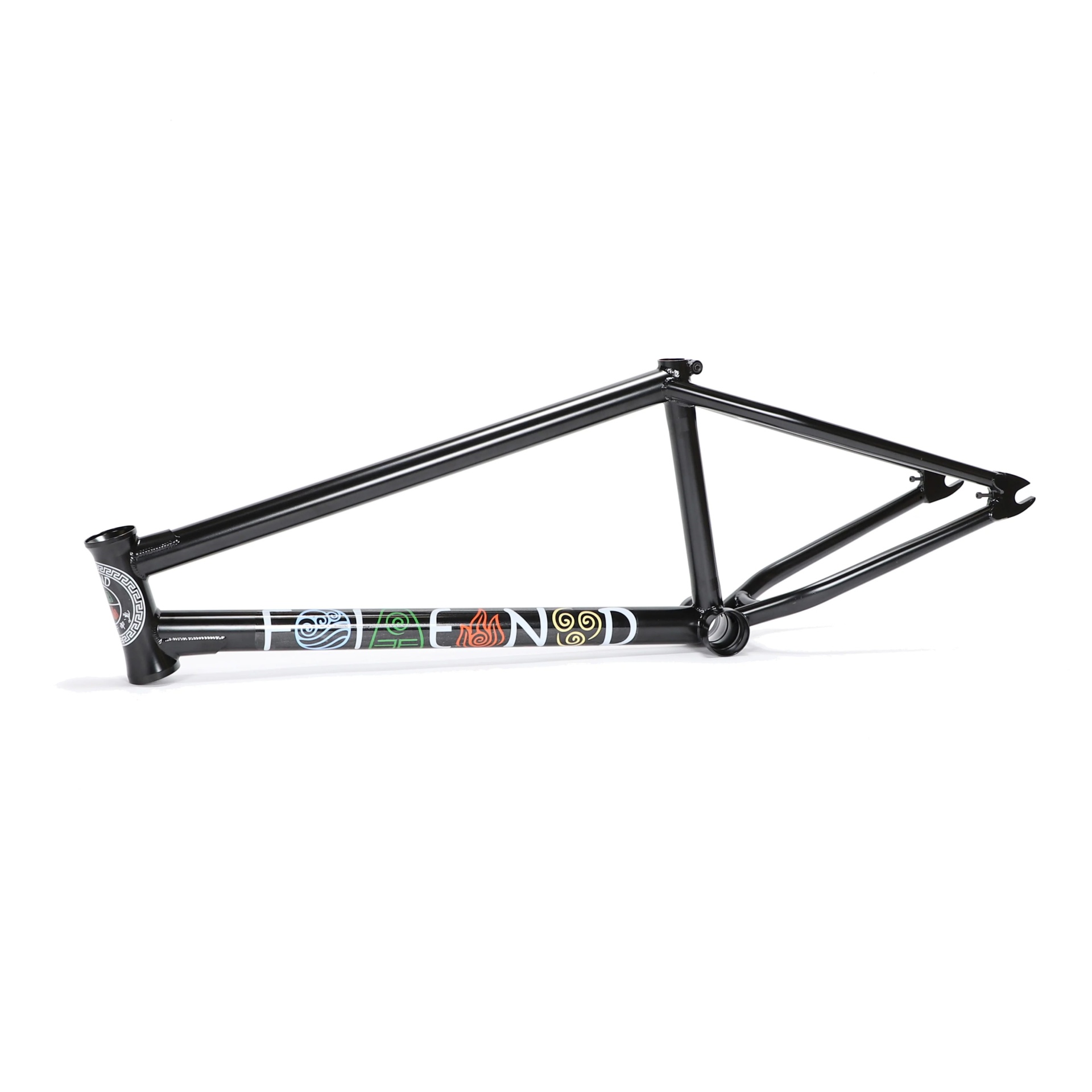

Designed by Johnny Raekes and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated 5" head tube(tapped for detangler tabs), double-butted top, ovalized down tube with external head tube gussets, externally gusseted seat tube with integrated post clamp, ovalized chain stays, tapered seat stays with Flush Mount brake lugs and 8mm thick investment cast dropouts with integrated chain tensioners.
**Brake mounts and hardware sold separately.
*Due to the nature of semi-transparent paint finishes the character of the raw tubing will be visible and may contain vein-like abnormalities making each frame unique.
Geometry 20.6″, 20.8″, 21″ top tube lengths 75.5* head tube (5" tall) 71* seat tube 9.5″ seat tube height (bottom bracket to top tube, center to center) 11.6″ Bottom Bracket Height 12.9″ chainstays 2.3kg / 5.2lbs. @ 20.75″
