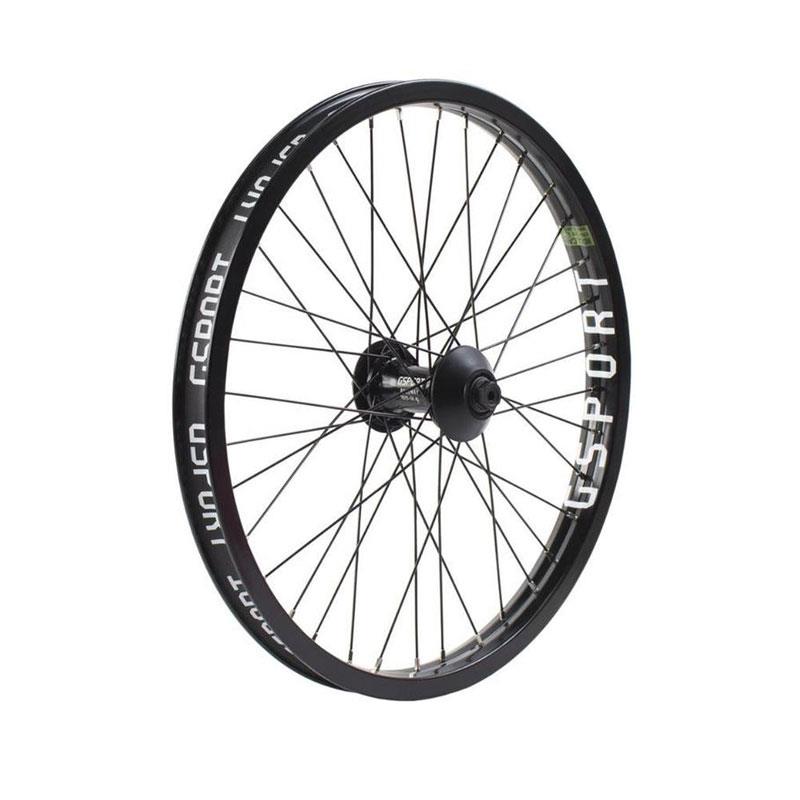

GSport Elite Front Wheel
If you take GSport Ribcage rim and lace it to the Roloway front hub, you’ll end up with one of the strongest front wheels you can get.
Matches GSport's Elite FC and Elite CSST rear wheels.
Comes stock with GSport High Pressure Rim Strips.

Roloway Front Hub
The new Roloway hub is a precision sealed front hub with 3/8” in-bound axle bolts and two plastic hub guards. An oversized axle, bearing configuration and 7075-T6 aluminum hub shell is used for unmatched durability.

Roloway Hub Specifications
Spoke Configuration: 36 hole
Hub Shell Material: 7075-T6 aluminum
Hub Shell Bearings: 6804RS sealed cartridge ball bearing
Axle: 20mm 7075-T6 aluminum female axle with steel helicoiled threads.
Axle Bolts: 3/8″ heat-treated 4130 chromoly axle bolts
Guard Option: Plastic hub guards included
Flange Diameter Left: 44mm
Flange Diameter Right: 44mm
Center to Flange Left:28mm
Center to Flange Right: 28mm
Weight: 340g / 12 oz

Ribcage Rim

The Ribcage is our strongest rim. It features thick outer walls, cross-over-spoke lacing, and our patented “Rib” design.

Ribcage Rim Specifications
Sizes: 20" only
Drillings: 36 and 48
Weight: 500g / 17.6oz
Width: 36mm
Height: 18mm
ERD: 389mm
U.S. Patent 7,427,112
