Harobikes - Lineage Ground Master 26"

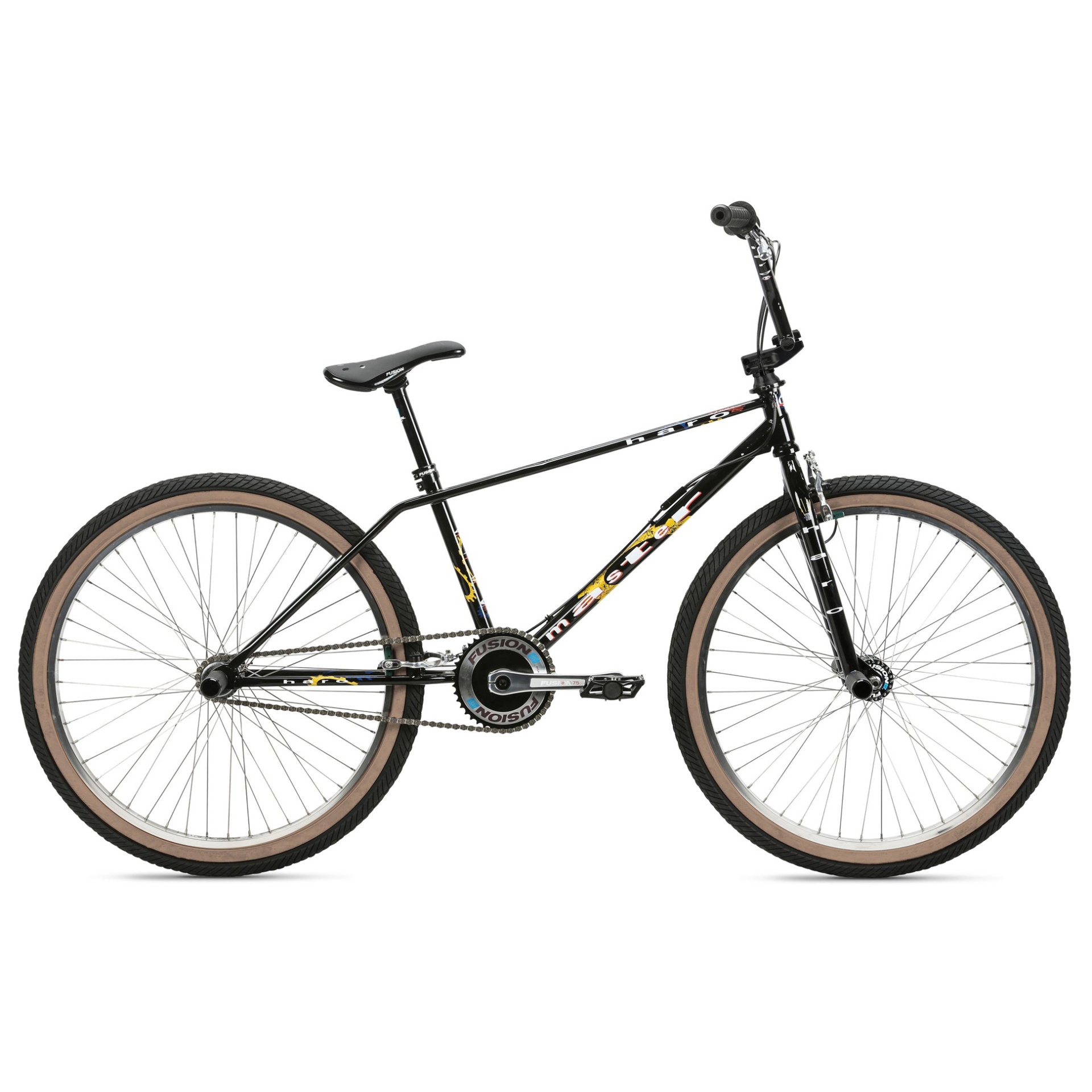

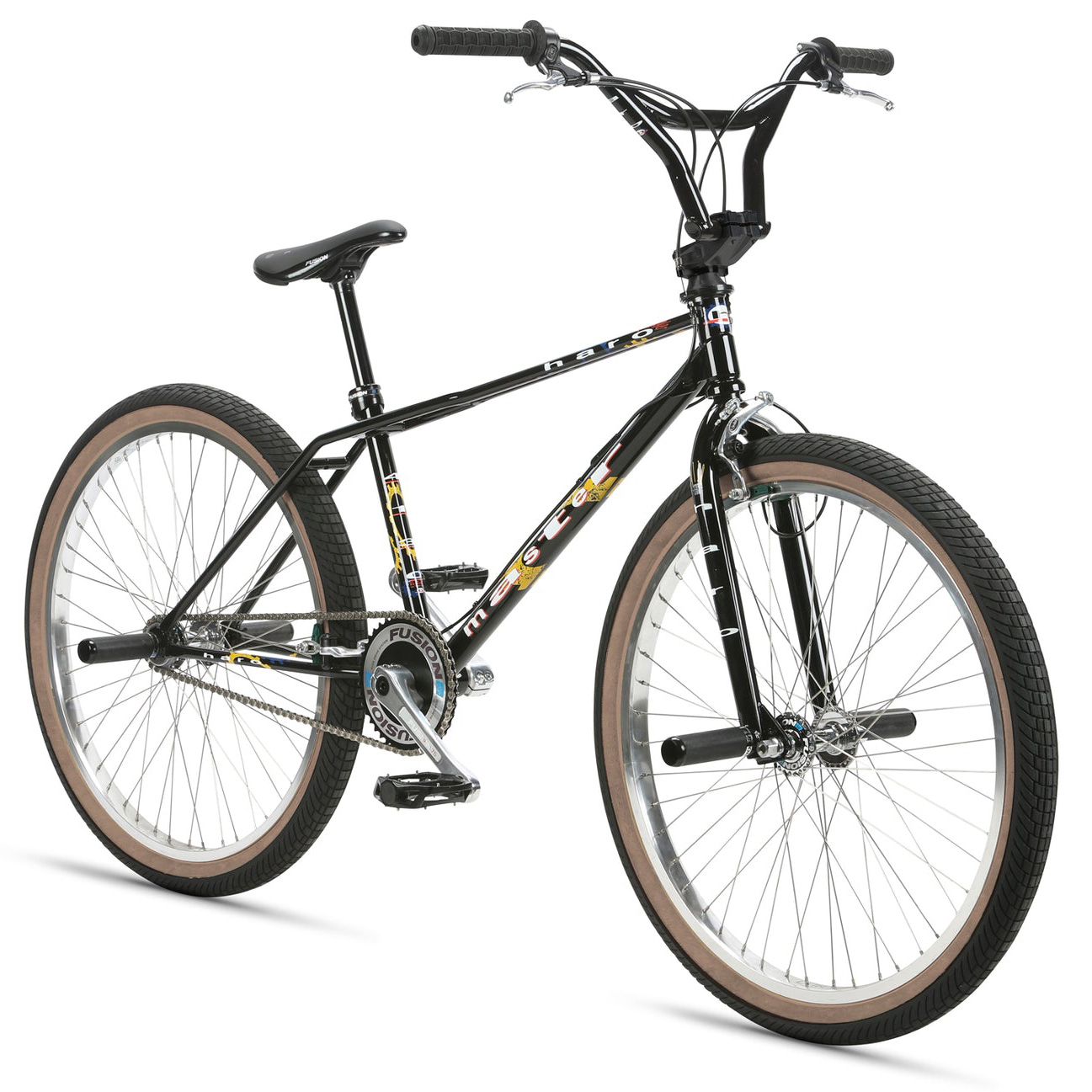

The Ground Master 26" is the big brother to the 20" version with a few changes to keep it tight and right on a larger scale. You get the 1992-inspired all chromoly twin top tube frame and heat treated chromoly fork, Kneesaver bars and Fusion parts throughout. Down below, we're rolling steady on double-wall alloy rims, laced to sealed high flange hubs, mounted with Kenda Kranium 26 X 2.25" tires. Smooth, larger diameter pegs are easy on your feet. Chainstay mounted rear brakes and internally routed front brakes keep the bike in control, even when you aren't. "Tricks are for kids" does not apply to the Ground Master 26".

FEATURES

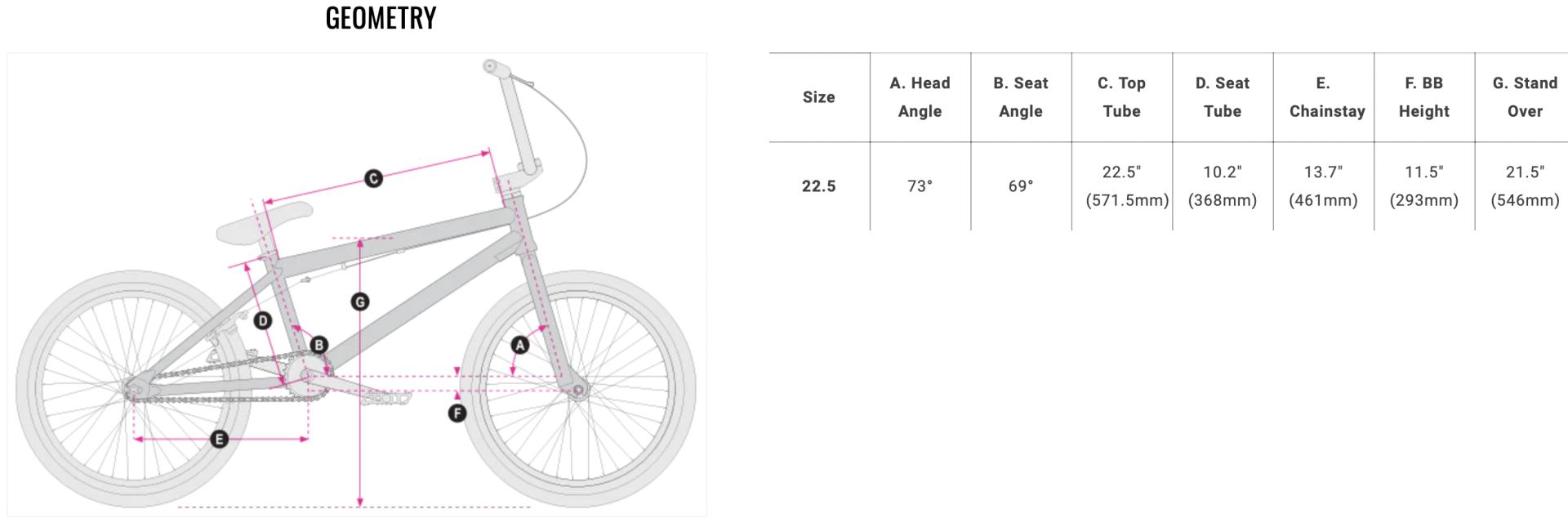

100% chromoly Lineage Ground Master frame with twin top tubes, hour glass Mid BB shell, integrated head tube and Lineage dropouts. 22.5" top tube length
100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing
100% heat-treated and butted chromoly Lineage Kneesaver 8.5" bars with Fusion Lineage CNC alloy top load stem

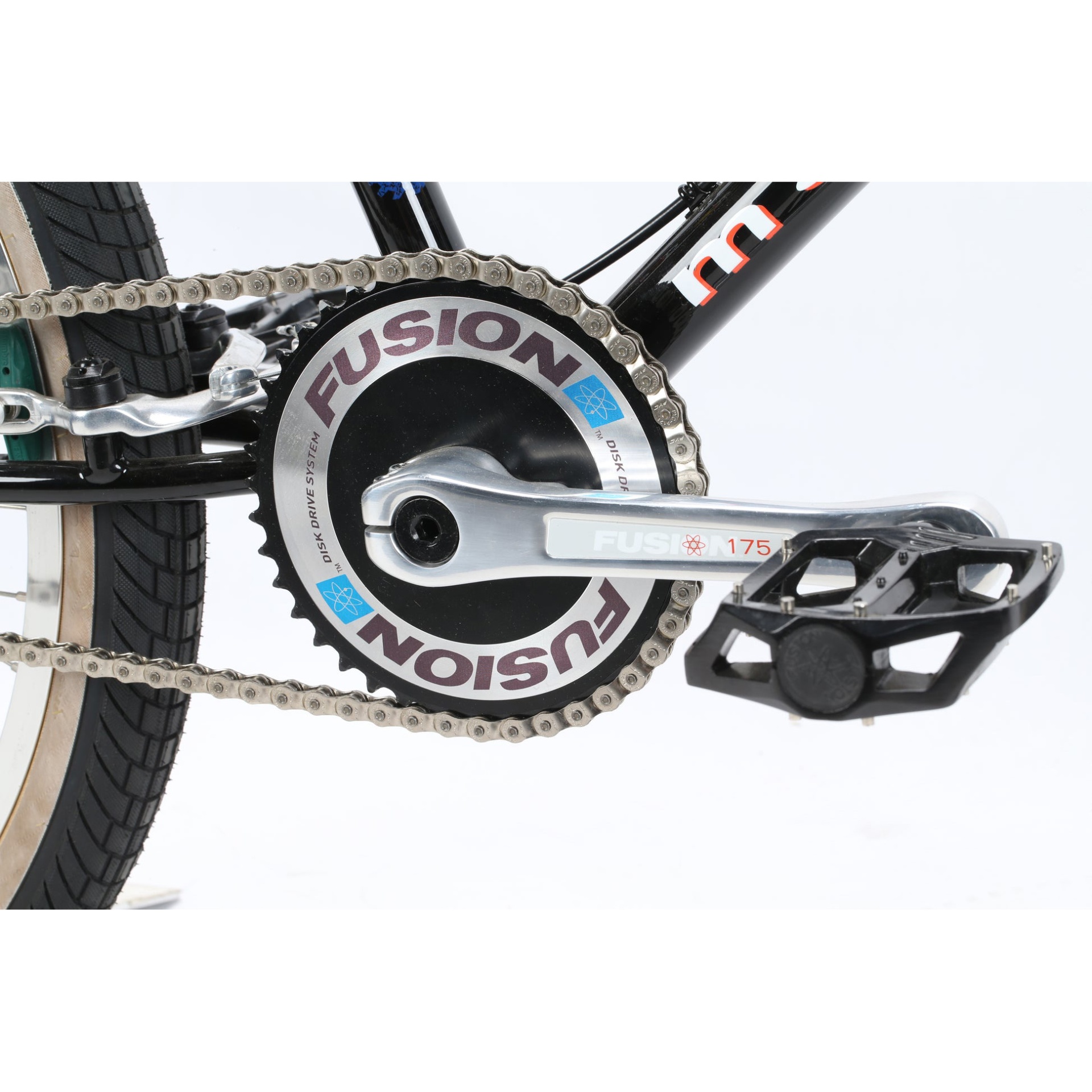

Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc CNC alloy 41T sprocket. Sealed Mid BB
41/17 gearing
Fully sealed wheels with Lineage high flange hubs with freecoaster rear. Double-wall 36H alloy rims.
Kenda Kranium tires 26 x 2.1" front and rear
Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
Haro Fusion pedals
CNC alloy pegs
CNC alloy gyro with Teflon bearing
Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers.
Haro Lineage alloy two-bolt seat post clamp

BIKE SPECS
Frame: Lineage Master Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts
Fork: Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
Cranks: Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom Bracket: Sealed MID BB
Sprocket: Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Gearing: 41/17
Pedals: Haro Fusion; alloy pedal body; crmo axle
Chain: KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
Tires: Kenda Kranium tire; 26x2.25; 60 max psi
Front Hub: 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings
Rear Hub: Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Rims: Haro Lineage 26x1.75"; 48h; (w200) (double wall welded joint)

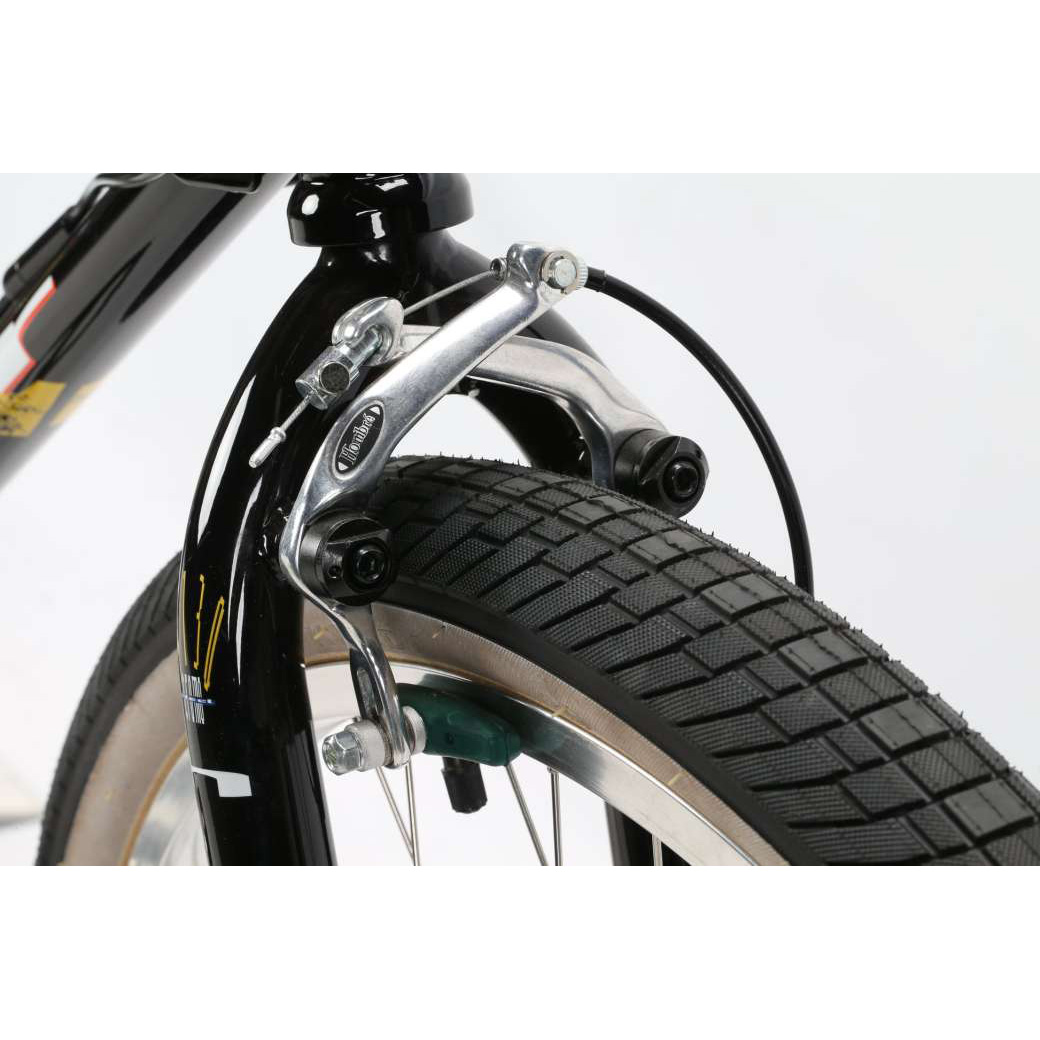

Brake: Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Lever: Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Rotor: Teflon bearing gyro - full cnc 6061 t6 included a-plate
Grips: Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).

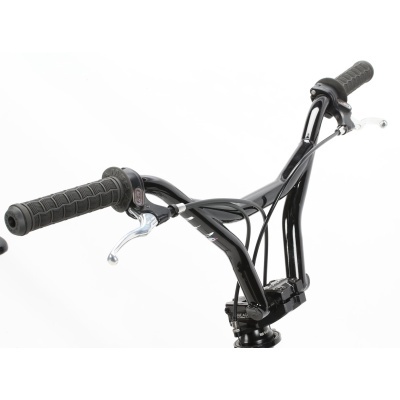

Handlebar: Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
Stem: Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Headset: Sealed Integrated, 1 1/8"

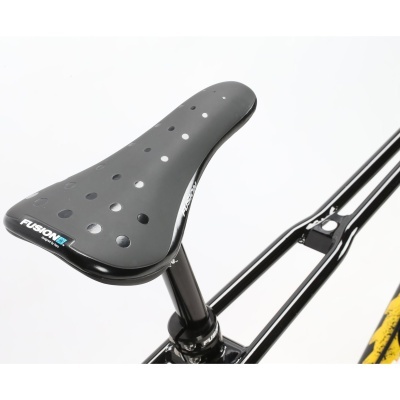

Seat: Haro Fusion slim stealth pivotal seat
Seat Post: Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post Clamp: Haro Fusion twintorc clamp; alloy 6061

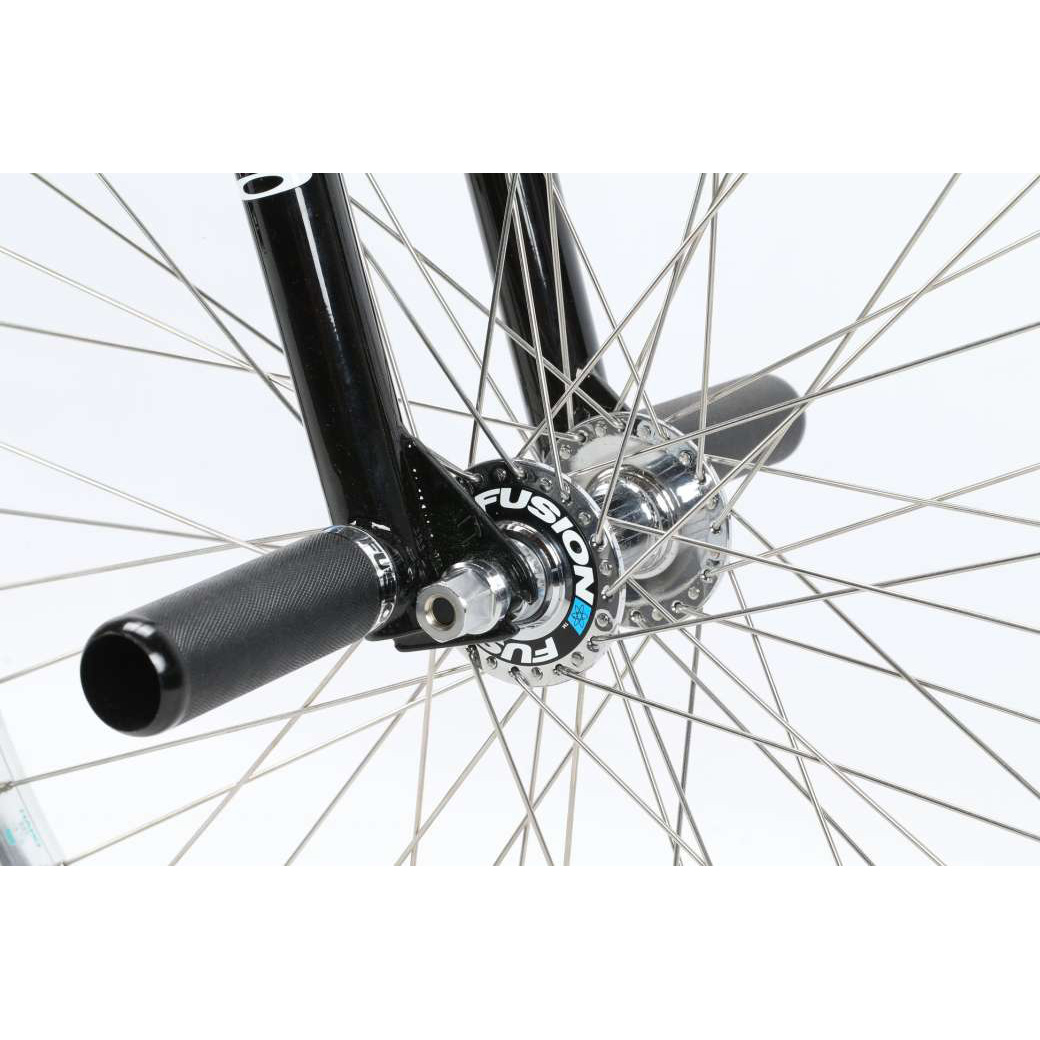

Pegs: 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

*Specifications are subject to change without notice
