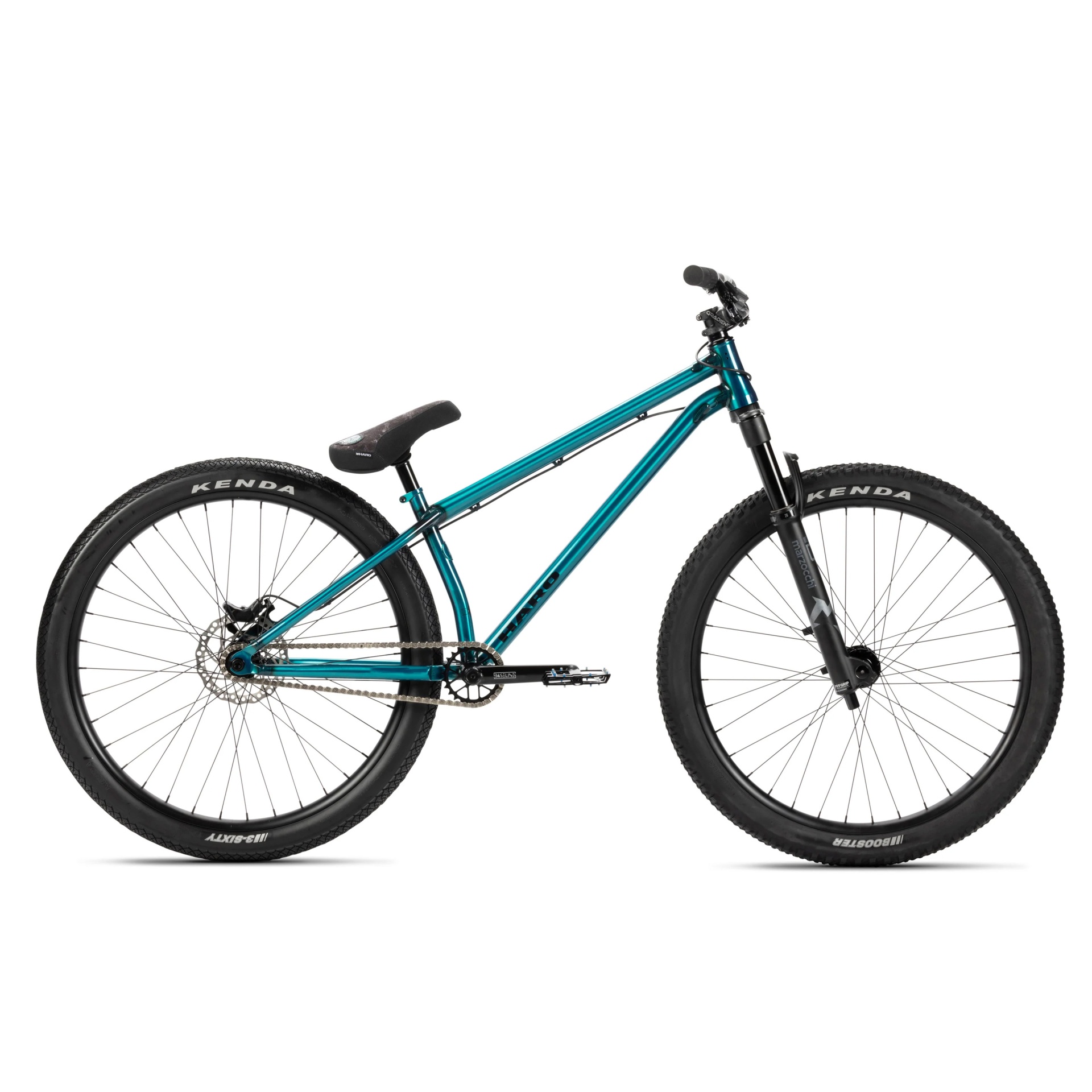

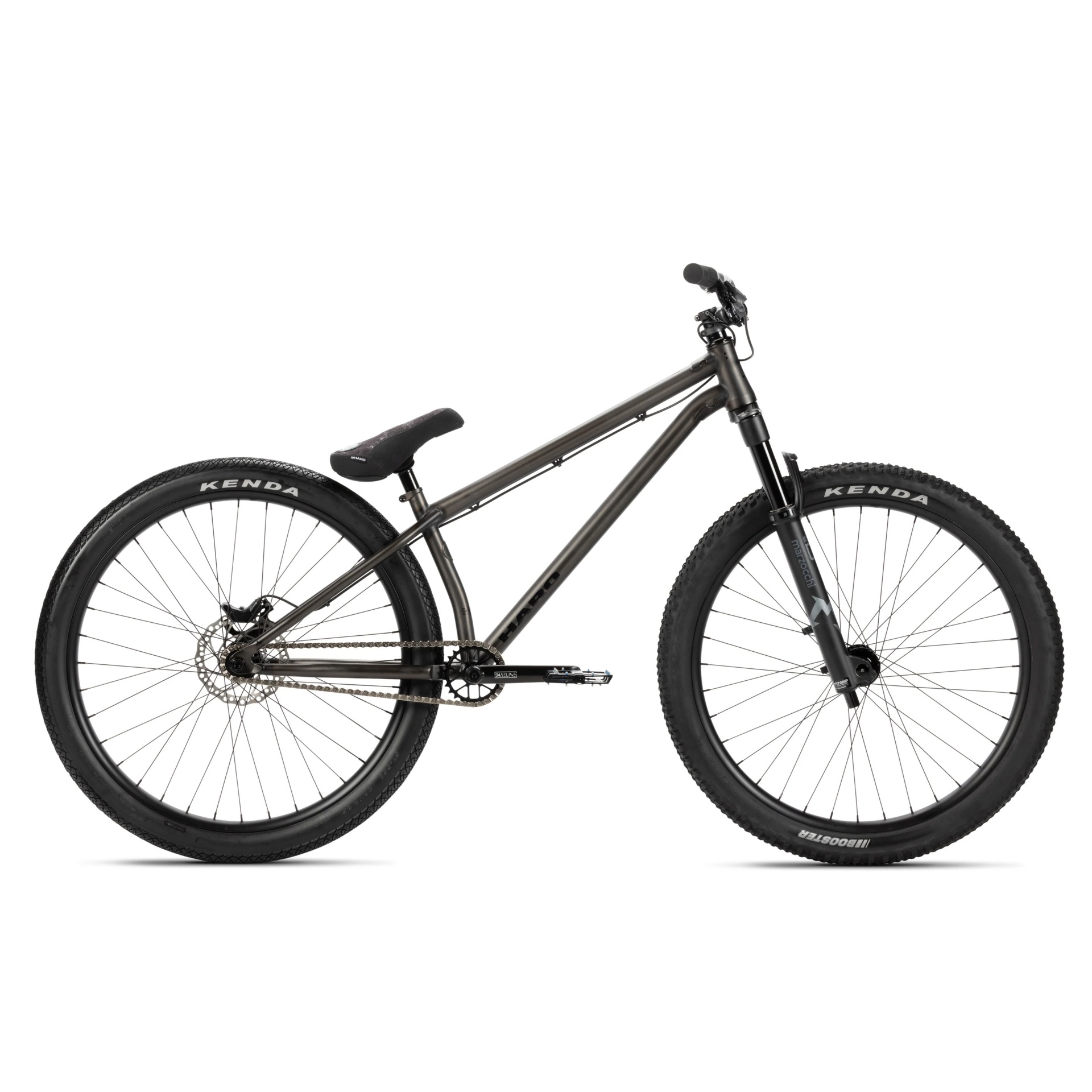

Harobikes - Steel Reserve 3

Much like the rest of our DJ line, our flagship Steel Reserve 3 has been updated in every way possible. We started by lengthening the top tube by almost 40mm and shortening up the chainstays by 11mm to give it that snappy, playful feel. The longer wheelbase is capable of high-speed sends without feeling twitchy. The frame is crafted from seamless 4130 chromoly tubing, with a tapered head tube and gusseted top and down tubes. We added an investment cast yoke behind the bottom bracket for a stiff, responsive rear end (with increased clearance) as well as investment cast dropouts with built-in chain tensioners. If you're comparison shopping, you'll note we spared no expense on the Marzocchi DJ 100mm forks, adding unmatched performance and value. Pro Taper bars, 48-spline 3-piece chromoly cranks, Tektro Gemini four-piston brakes and a stout sealed wheelset with double-wall rims and a 20mm thru axle up front round out the build. Want to build one from the ground up? No worries, the SR 3 is available as an aftermarket frame, too.

Features
Full seamless chromoly frame w/integrated head tube, removable brake hardware, Euro BB, invest cast BB yoke, invest cast dropouts with built-in chain tensioners
Marzocchi Bomber DJ fork with adjustable damper. Tapered 1-1/8"-1.5" alloy steerer. 100mm travel
Full seamless chromoly 48-spline 3-pc cranks. 19mm chromoly spindle
25T CNC alloy sprocket
25/13
Baseline half-link chain
Pro Taper bars, 31.8 clamp area, 50mm Rise
FSA Gradient stem, 31.8 clamp area.
Haro Cliq lock-on grips
Haro DJ Mid Pivotal seat
CNC-machined, sealed bearing front hub with 20mm thru axle
CNC-machined alloy rear hub. 4 sealed bearings, fully sealed 6-pawl driver. 3/8" female bolts
26" 36 hole alloy rims. Double-wall, sleeved, 36mm inner-width
Kenda Booster SRC 26x2.4" front tire/Kenda 360 SRC 26x2.25" rear tire
Tektro Gemini SL 4 piston hydraulic disc brake w/160mm rotor

Specifications
Frame: 100% Chromoly frame with integrated headtube, removable brake hardware, Euro BB Shell, invest cast BB yoke, invest cast dropouts with integrated chain tensioners
Fork: Marzocchi Bomber DJ, w/adjustable damper, Alloy Tapered Steerer, 1-1/8"-1.5", 26"x100mm Travel
Cranks: Baseline 48 spline 19mm spindle 165mm
Pedals: Alloy with replaceable pins
Chain: Baseline Halflink Chain
Bottom Bracket: Double row sealed bearing Euro BB
Tires: Front - 26x2.4" Kenda booster SRC, Rear - 26x2.25" Kenda 360 SRC
Wheels/Rims: 26", 36 Hole Alloy, Double Wall, sleeved 36 hole Inner Width
Front Hub: CNC Alloy Sealed Bearing 20mm through axle
Rear Hub: CNC Alloy 4 sealed Bearing, Fully Sealed Driver, 6 pawls, 3/8" female bolts
Brakes: Tektro Gemini SL 4 piston With 160mm Rotor
Grips: Cliq Lock On Grips
Handlebar: Pro Taper 31.8 clamp, 50mm rise
Stem: FSA Gradient 31.8mm clamp
Headset: FSA 45° X 45° ACB Sealed 1-1/8" - 1.5"
Saddle: Haro DJ Mid Pivotal
Seat Post: 27.2 Alloy Pivotal
Seat: Clamp Integrated
