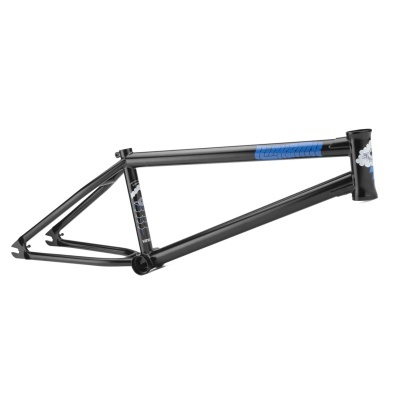

KinkBikeCo. - Cloud Frame

Travis Hughes's first signature frame, the Kink Cloud. The Cloud is really about function over form, a no-frills, straight to the point, super-strong frame that is meant to be ridden. You won’t find any elaborate bridge designs or complex casting shapes, just clean lines, 100% chromoly tubing, gussets top and bottom, and clean laser-cut dropouts. Of course, the Cloud frame still includes the convenient features you come to expect from Kink like the integrated chain tensioners and seat post clamp. Most importantly, as anyone who’s seen Travis ride already knows, the Cloud frame can take a beating.

TECH SPEC
Material 100% 4130 Chromoly Tubing
Headtube Integrated Campy Spec
Dropouts Laser Cut with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Brakeless
Particulars Toptube and Downtube Gussets
Integrated Chain Tensioners
Integrated Seat Clamp
Clean Lines
Weight 5lb 4oz - 2.38kg (20.5")

GEOMETRY
Toptube Sizes 20.5” / 20.75” / 21” / 21.25”
Chainstay Length 13.5” Slammed
Bottom Bracket Height 11.65"
Standover Height 8.75"
Headtube Angle 75.5°
Seattube Angle 71°
Headtube Height 4.9"
