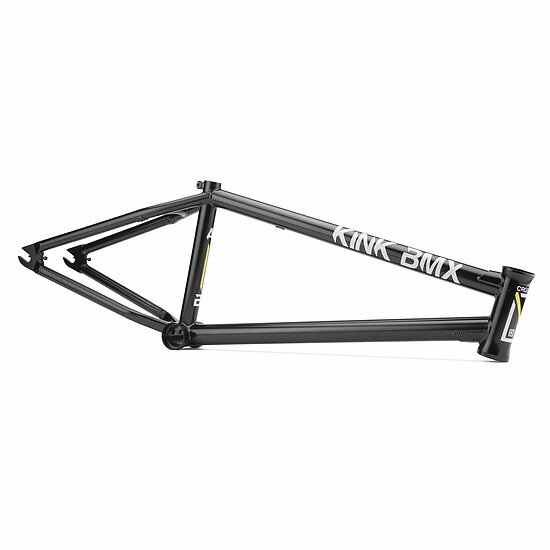

KinkBikeCo. - Crosscut Frame

The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding, and the short 12.5” chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25” standover height gives the frame a clean and traditional look, but with the aforementioned modern-day geometry. The all new investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp, integrated chain tensioners, and removeable brake mounts.

TECH SPEC
Material 100% 4130 Chromoly Tubing
Headtube Integrated Campy Spec
Dropouts Laser Cut with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid BB
Braking Removable Through-Bolt Brake Mount System
Particulars Toptube and Downtube Gussets
Integrated Seat Clamp
Investment Cast Chainstay Yoke
Weight 4lb 15oz - 2.23kg (20.5")

GEOMETRY
Toptube Sizes 20", 20.5”, 20.75”, 21”, 21.25"
Chainstay Length 12.5" Slammed
Bottom Bracket Height 11.6"
Standover Height 9.25"
Headtube Angle 75.5°
Seattube Angle 71°
Headtube Height 5"
