Wethepeople - Battleship Frame

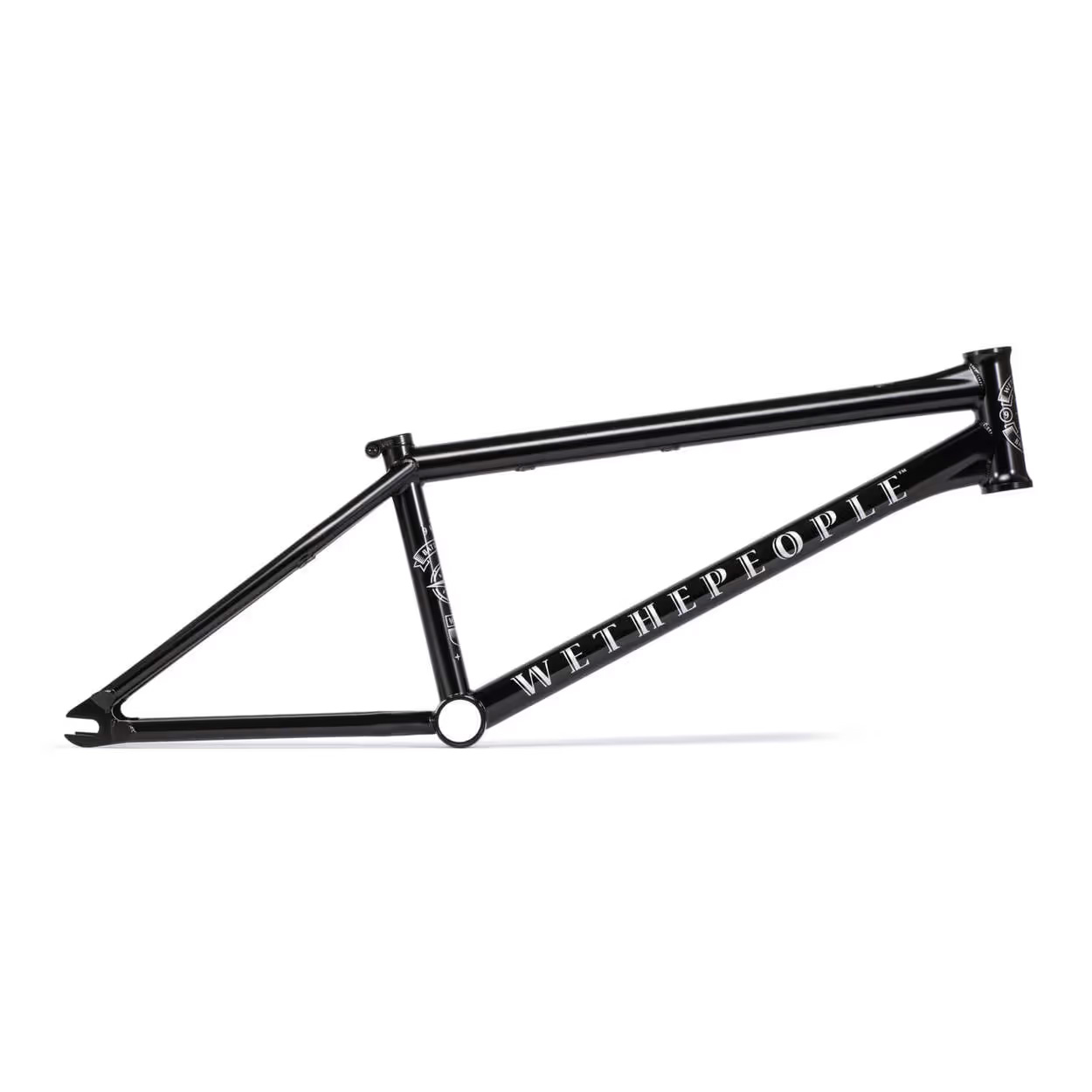

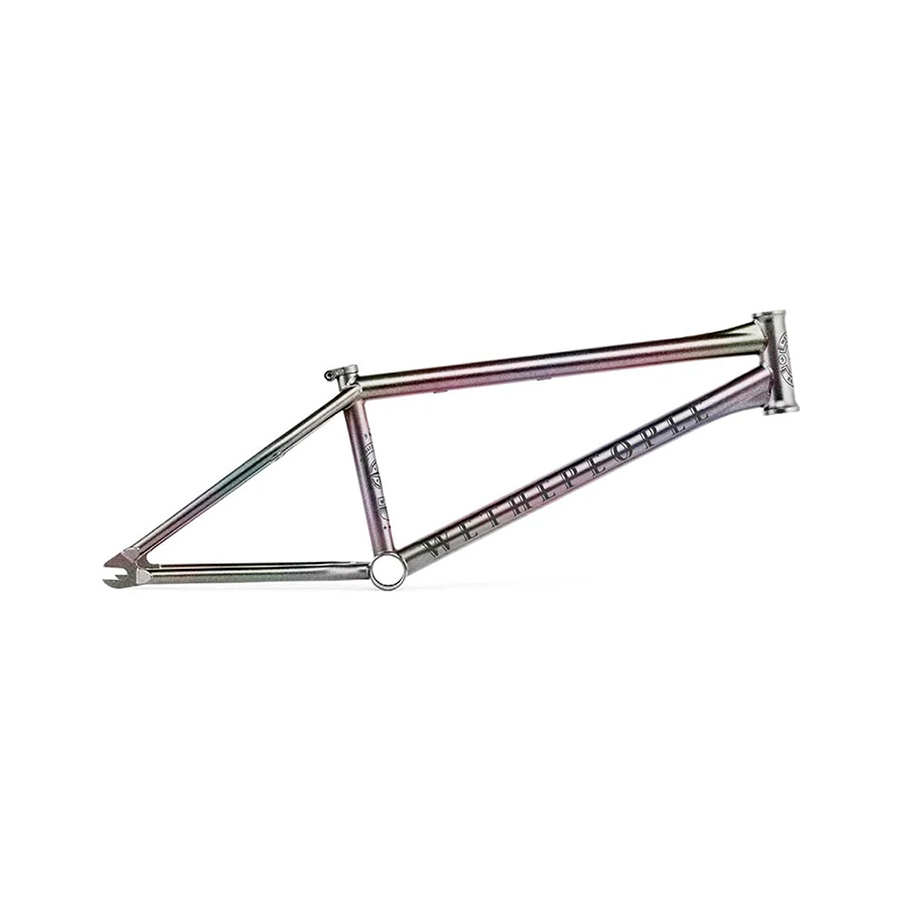

BATTLESHIP FRAME
COMBINING CUTTING EDGE HYDROFORMING TECHNOLOGY WITH INPUT FROM THE WETHEPEOPLE TEAM, THE BATTLESHIP FRAME IS THE PERFECT MATCH FOR THE PROGRESSIVE STREET RIDER. BOASTING AN INCREDIBLY SHORT 12.7" CHAINSTAY, THICKER CNC MACHINED DROPOUTS (DESIGNED TO WORK FLAWLESSLY WITH HUB-GUARDS AND PEGS) ; THE BATTLESHIP IS A SUPER TOUGH, NO-NONSENSE STREET WEAPON WITH OUR MOST RESPONSIVE GEOMETRY YET.
NEW FOR 2020, THE BATTLESHIP NOW FEATURES NEW GRAPHICS, REMOVABLE BRAKE MOUNTS AND AN INVEST CASTED SEAT CLAMP.
INCLUDES LIFETIME GUARANTEE.

SPECIFICATIONS
TUBING:
butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.5", 20.75 "or 21" TT

CHAINSTAY LENGTH:
12.7" slammed, 13" centered

ANGLES:
HT: 75.5 °, ST: 71 °

BOTTOM BRACKET:
mid-bb width: 74mm, height: 11.7 ", cnc machined and heat-treated

HEADTUBE:
taller 127mm height, cnc machined and heat-treated, integ. h / set

DROPOUTS:
6mm thick laser cut and heat-treated, new shape for perfect hubguard/peg fit even when slammed

SPECIAL FEATURES:
hydroformed top and down tube for the strongest possible connection to the headtube

Super strong, technical street frame with the shortest chainstay possible

taller 127mm extended headtube for less spacers with an uncut fork

wider rear triangle allows clearance for a 2.5" tire

frame comes drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included

investment casted seat clamp

WEIGHT:
2.42kg/ 5.35 lbs - (21" TT)

FRAME GEOMETRY
Top Tube: 20.5"/20.75"/21"
Chain Stay: 12.7" - 13.2"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.7”
Stand Over Height: 9”
